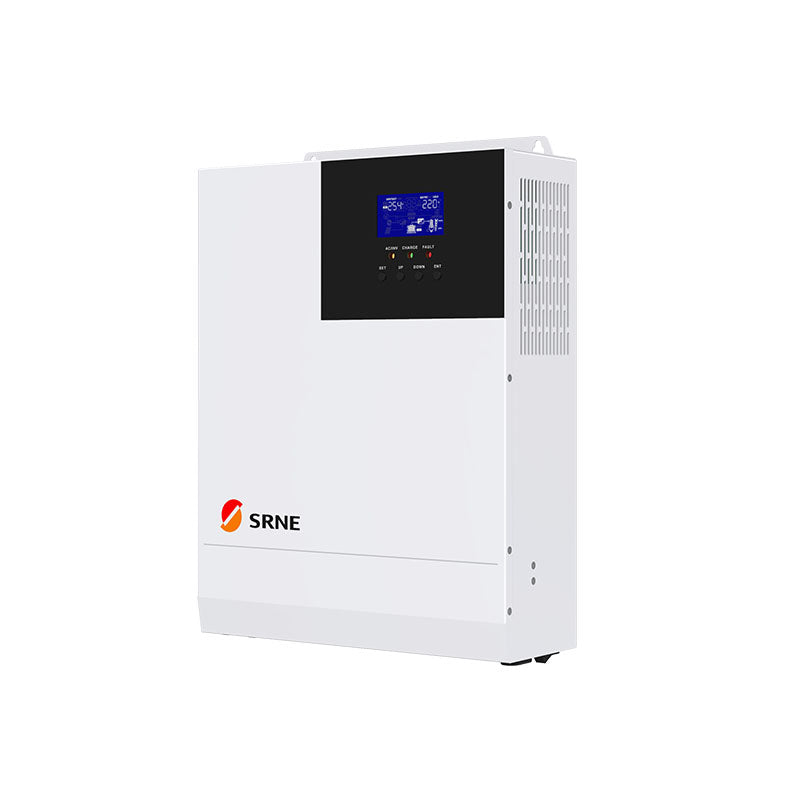

The SRNE3024 is a 3,000, 24 VDC inverter-charger that includes a built-in MPPT charge controller. Offering a simple, all-in-one installation and flexible programming, the new MidNite Solar Inverter/charger DIY Series will charge virtually any battery chemistry.
With Excellent surge capability, the DIY Series will start the most demanding 120VAC Loads. Perfect for your off-grid cabin or house, the DIY Series is designed to be affordable, dependable, and supported by the industry's best customer service personnel at MidNite Solar.
Note: This Inverter charger will not do temperature compensation when charging.
Specifications:
- System Voltage: 24VDC
- Rated AC Output Power: 3000W
- PV panel MPPT Voltage: 30-95V
- Max PV array power: 1400W
- Input/Output frequency: 60 Hz
- Max AC Battery Charging Current: 40A (Adjustable)
- Max PV input Voltage: 100V
- Battery type: Lead Acid or Lithium
- Dimensions: 14.90"L x 11.03"W x 4.06"H
- Warranty: 1 year
Applications:
- Off grid - battery and PV or generator required
- Grid connected for backup - battery required
