EPEveR PWM Solar Charge Controller 12V/24V; Dual USB
Regular price
$55.50
Unit price
per
- Thank you for selecting the ViewStar AU series common positive solar charge controller.

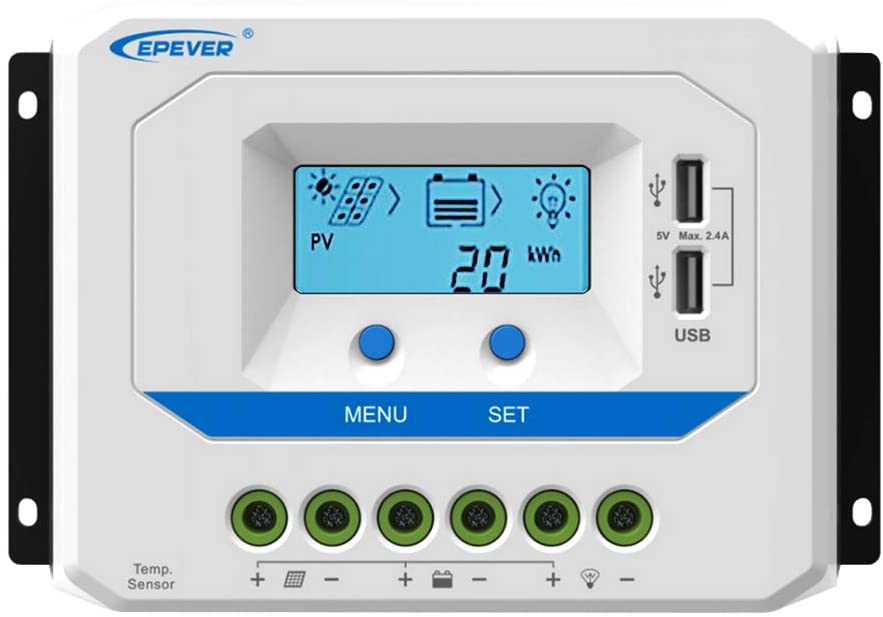

- The VS-AU controller is a PWM charge controller with built in LCD display that adopts the most advanced digital technique.
- The multiple load control modes enable it can be widely used on solar home system, traffic signal, solar street light, solar garden lamp,etc.
- Controller can work continuously at full load within the environment temperature range from -25 to 55 ℃
- 3-Stage intelligent PWM charging：Bulk, Boost/Equalize, Float
- Support 3 charging options: Sealed, Gel, and Flooded
- LCD display design, dynamically displaying device’s operating data and working condition

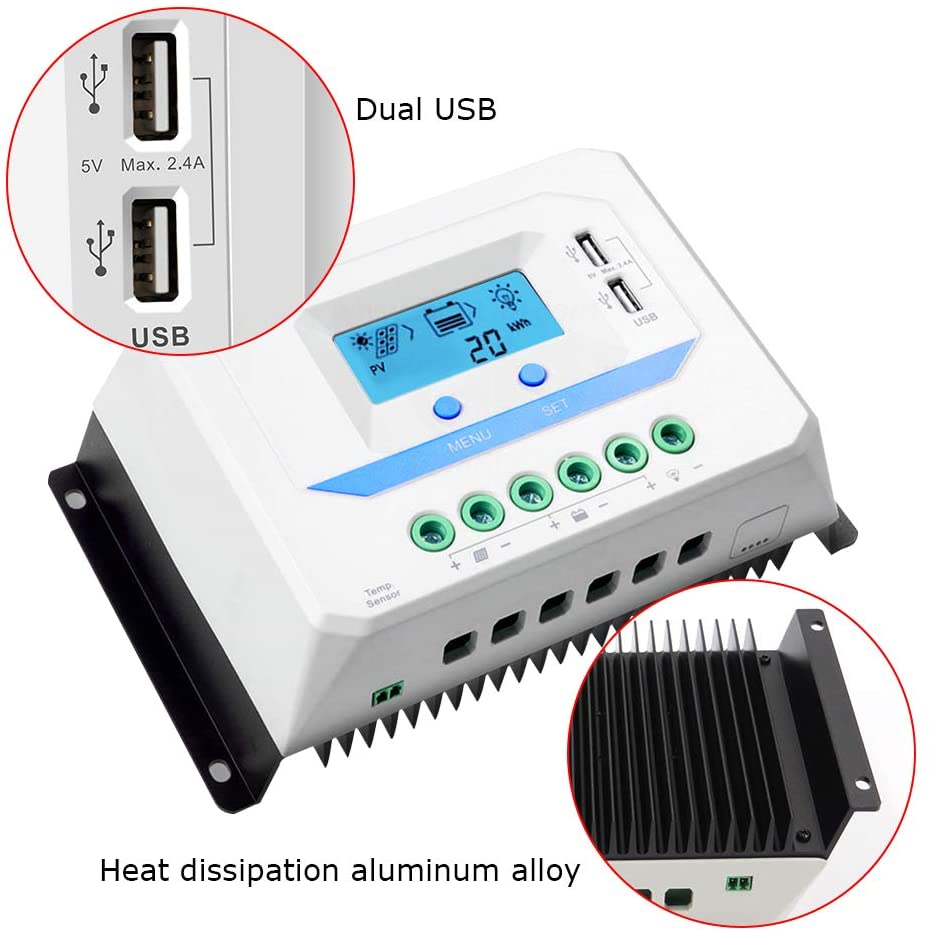

- Double USB design, the power supply charge for electronic equipment
- With humanized button settings, operation will be more comfortable and convenient
- Multiple load control modes
- Energy statistics function
- Extensive Electronic protection
- Battery temperature compensation function

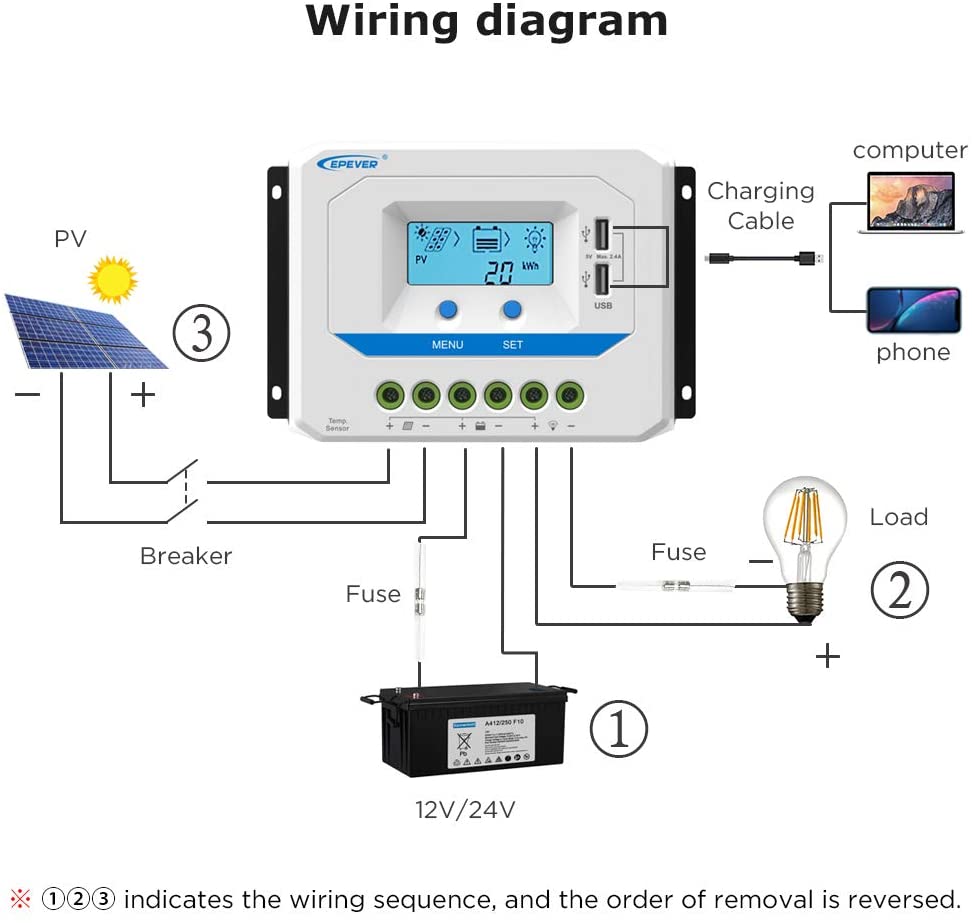

- The controller connection sequence is Battery--Load--Solar Panel, and discounect the system in the reverse order Solar Panel--Load--Battery
- Connect components to the charge controller in the sequence as shown above and pay much attention to the “+” and “-”. Please don’t insert the fuse or turn on the breaker during the installation. When disconnecting the system, the order will be reserved.
- After power on the controller, check the LCD on. Always connect the battery first, in order to allow the controller to recognize the system voltage
