- Complete kit includes: (1)5PCS 110 Watt 12 Volt Flexible Solar Panel (2)40A MPPT Charge Controller(3)30ft 10AWG MC4 Adaptor Kit (4) 8ft 10AWG Tray Cable(5) Cable Entry Housing(5) 4 Pairs Y Branch Connectors
- Flexible and Portable : the thin solar film can be gently flexed to follow a smooth curve of 27 degrees max on a coach roof, RV, boat, caravan, cabin, tent, golf cart etc. Holes on panels are pre-drilled for fast mounting and securing, perfect for non-permanent installations ;Can be affixed by adhesive, grommets or Velcro (with which you can easily attach or detach the panels) ;Can be installed without costly structural roof reinforcements.
- Powerful And Durable : made from Sunpower monocrystalline pv cells , the most efficient solar cells provider in the world. 21.5%-24% Higher-than-average Module Conversion Efficiency. ETFE Design longer life time of 15 years and is Scratches-protected and weather resistant.
- MPPT Charge Controller: Advanced Charge Control Technology (MPPT) with high tracking efficiency no less than 99.50%; peak conversion efficiency of 98%; Ultra-fast tracking speed; accurately recognizing and tracking of multiple power point; 3-stage charge;Common negative grounding design. Easy Monitor and Operate: Multi-function LCD displays system information intuitively; User programmable for battery types, load control etc, via PC software or remote meter MT-50
- 25-year transferable power output warranty on panels and 1-year warranty on rest of the kit components

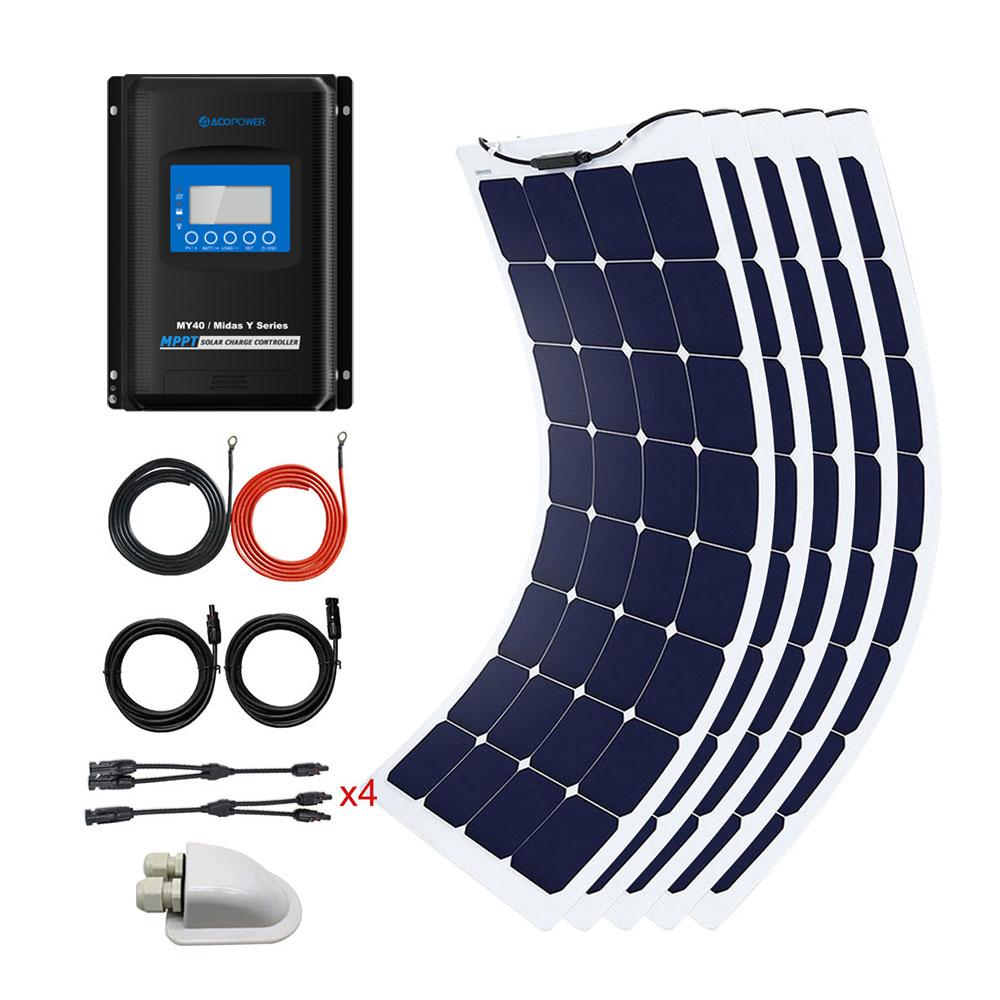

ACOPOWER 550W Flexible Solar Kit w/ 40A MPPT Charge Controller ,Thin Lightweight ETFE Solar Charger on RV Boat Cabin Tent Caravan w Solar Connector Controller

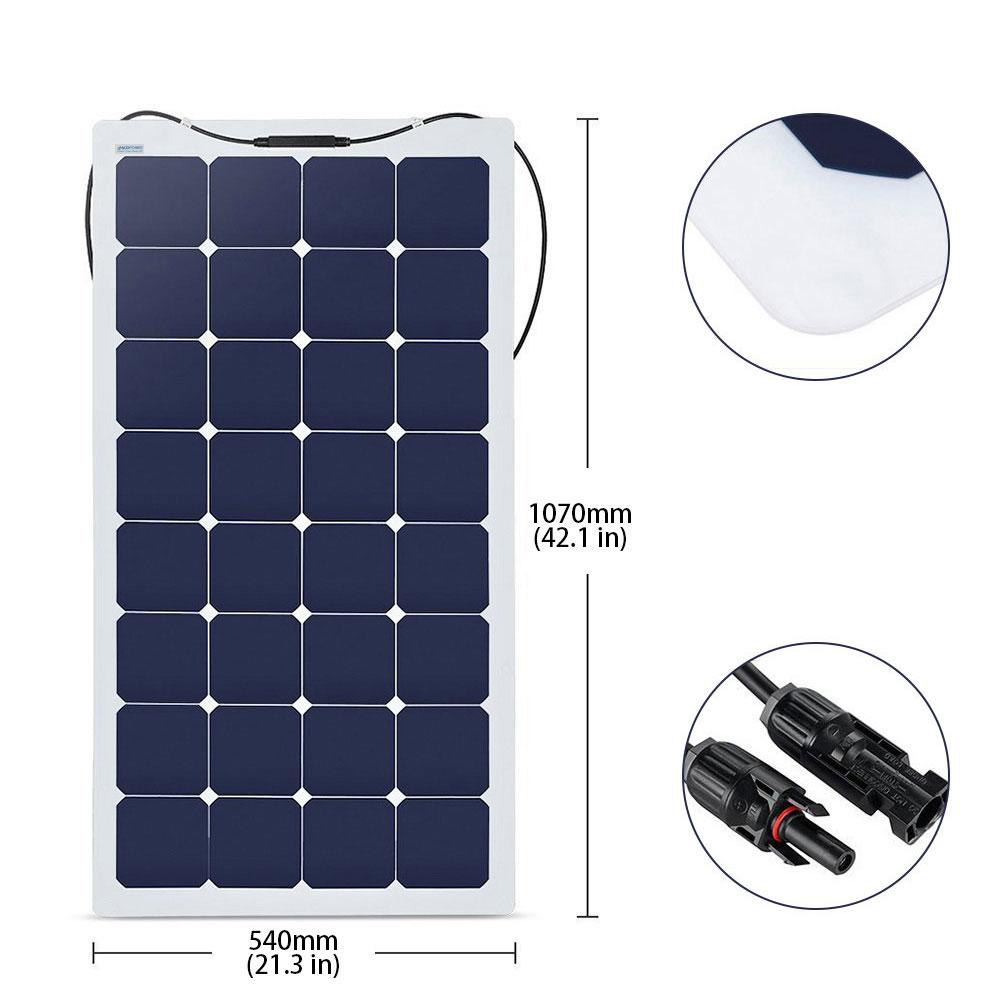

110 Watt 12 Volt Flexible Mono Solar Panel

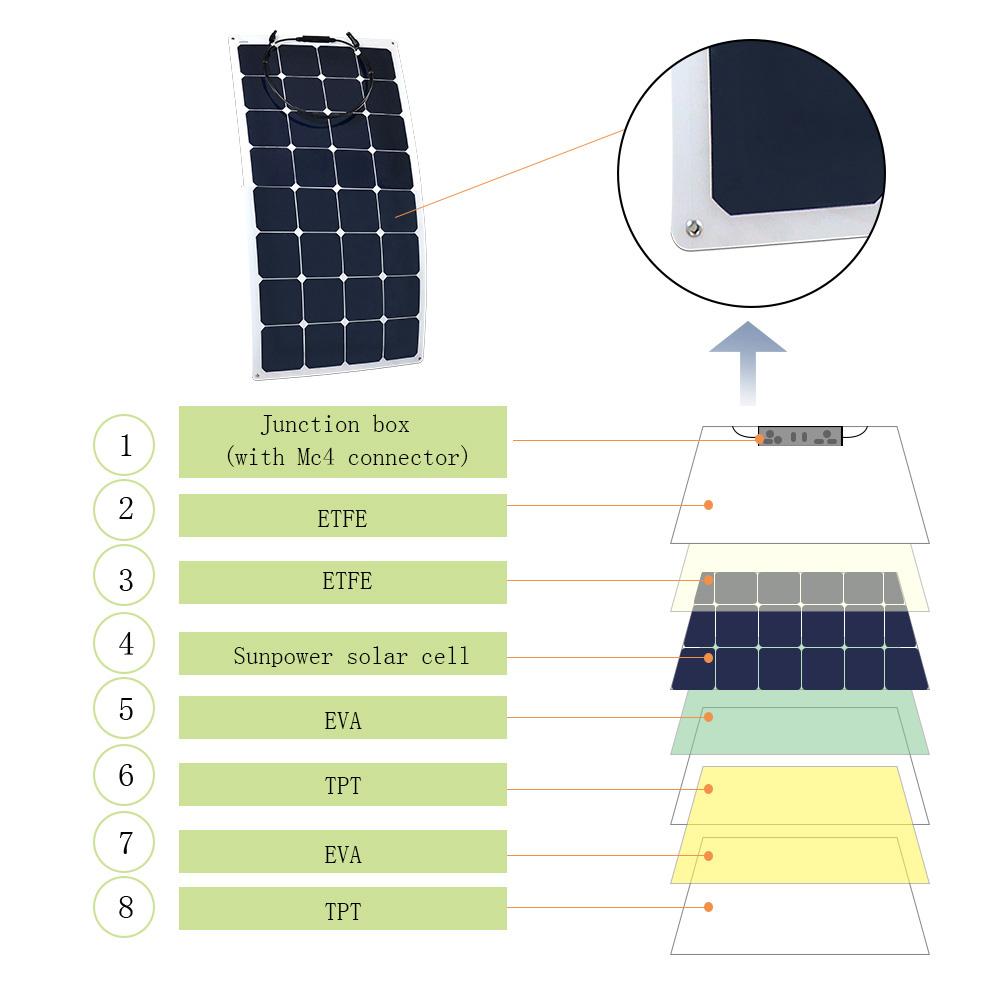

110W Semi-Flexible Solar Panel (Made of SunPower Solar Cell)
Peak Power (Pmax):110W
Peak Circuit Voltage(Voc):20.8V
Max Power Voltage(Vmp):17.6V
Short Circuit Current(Isc):6.9A
Max Power Current(Imp):6.25A
Power Tolerance Range:±5%
Maximum System Voltage DC:1000V
Dimension:42.125*21.25*0.1 Inch
Weight:4.85 LB

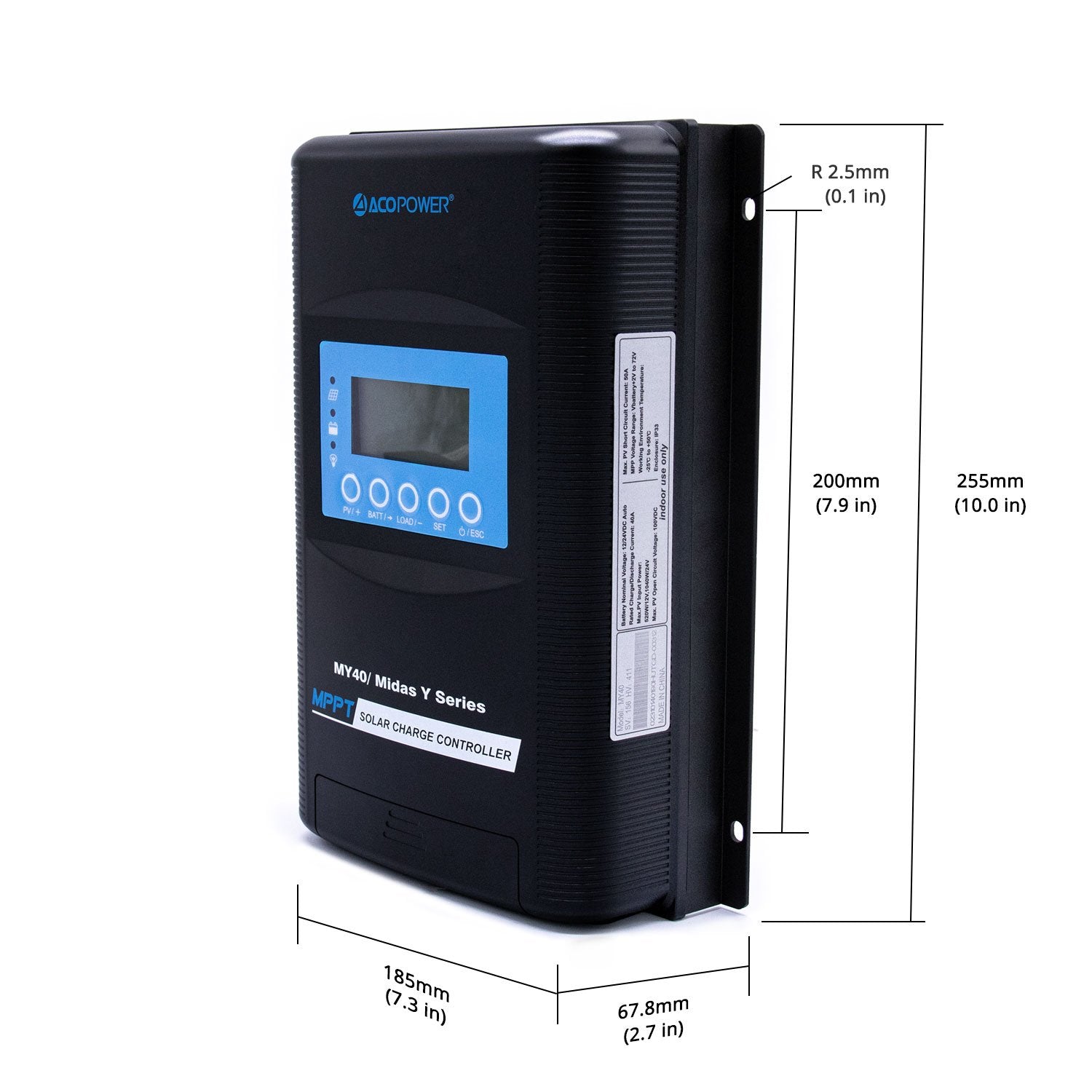

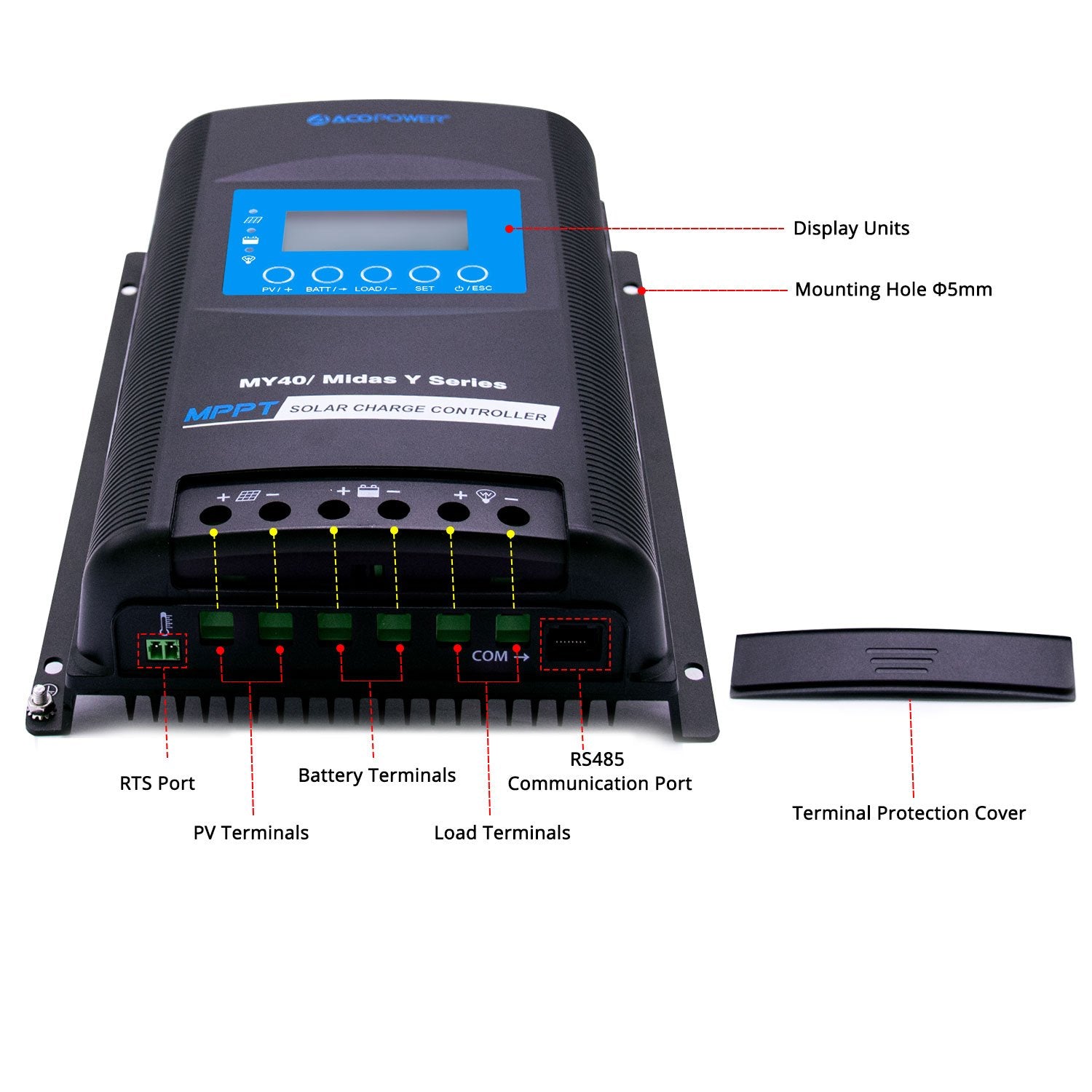

40A MPPT Charge Controller
Ultra-fast tracking speed
Accurately recognizing and tracking of multiple power point
User programmable for battery types, load control etc.
Common positive grounding design（If your system is common negative grounding design, please contact us before shipping）
Rated charge current: 40A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/520W,24V/1040W
Enclosure: IP30

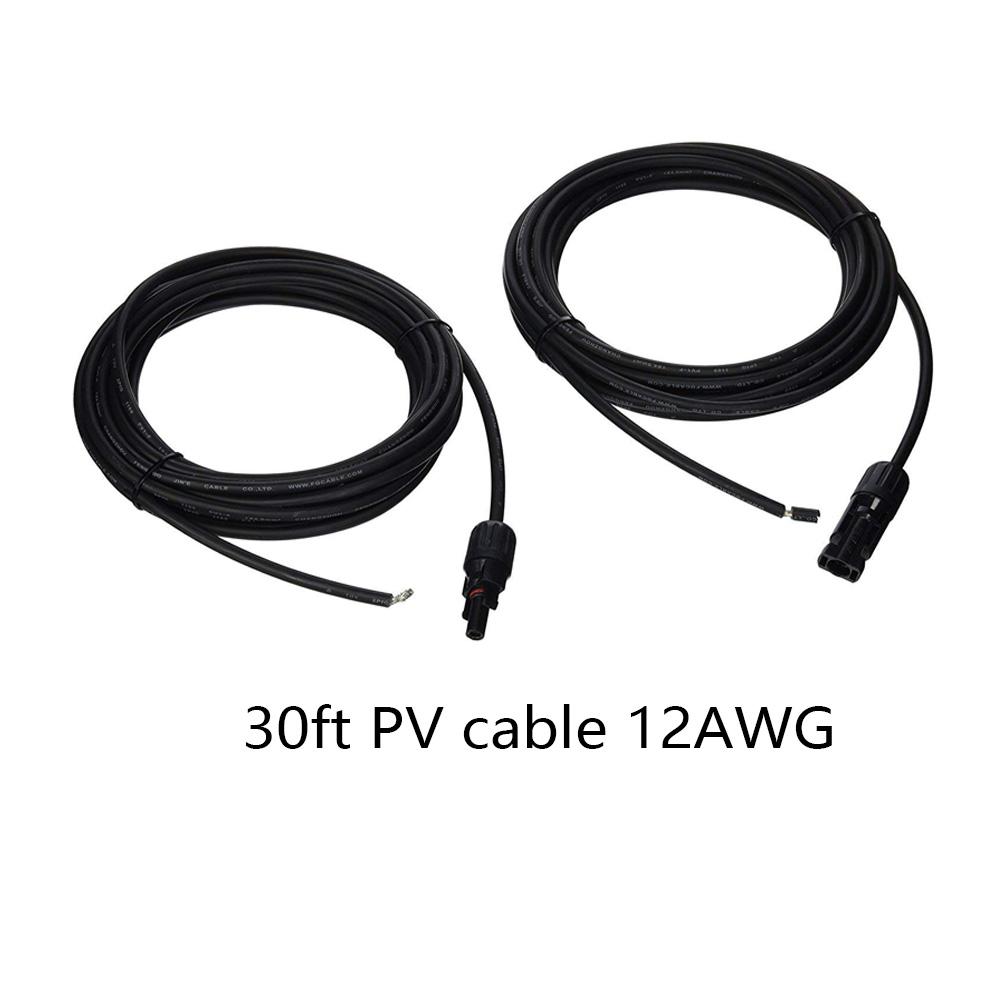

1PC 30ft 12AWG PV Cable

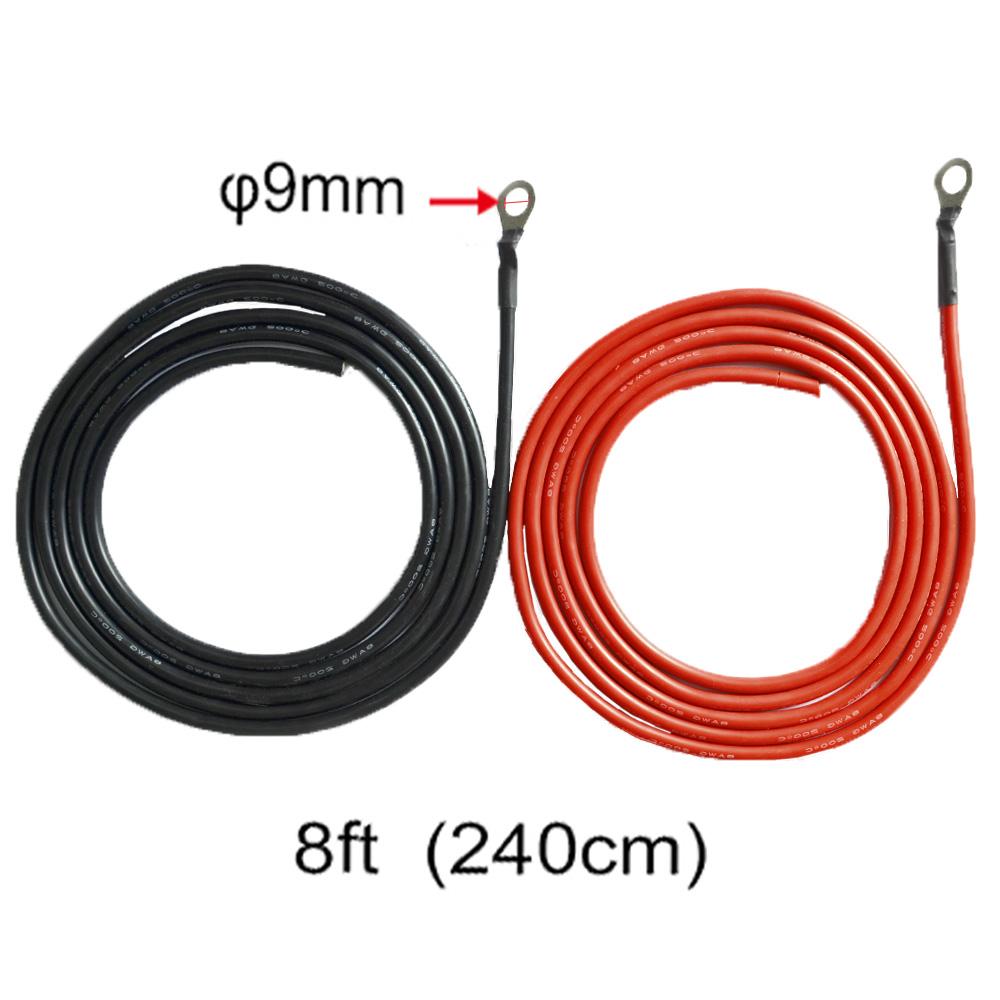

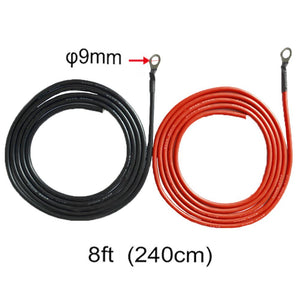

1PC 8FT 8AWG Tray Cable

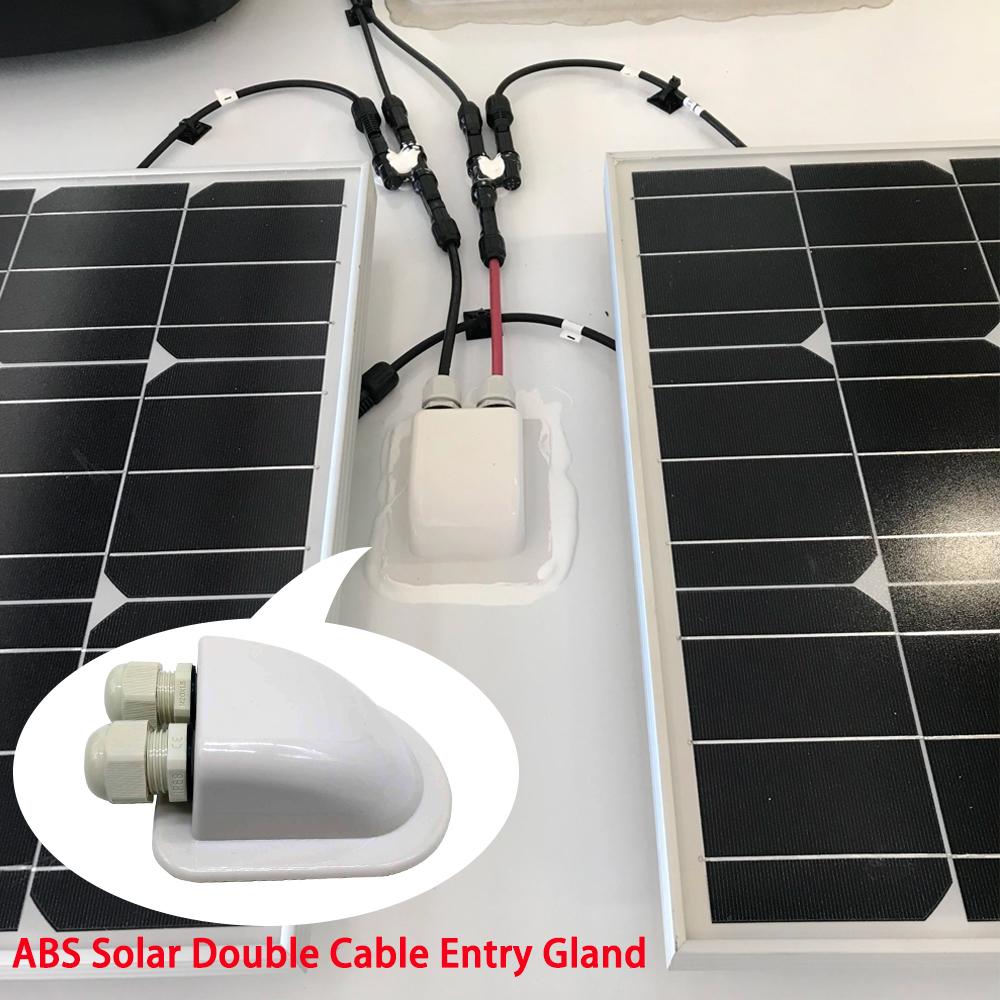

1PC Cable Entry Housing

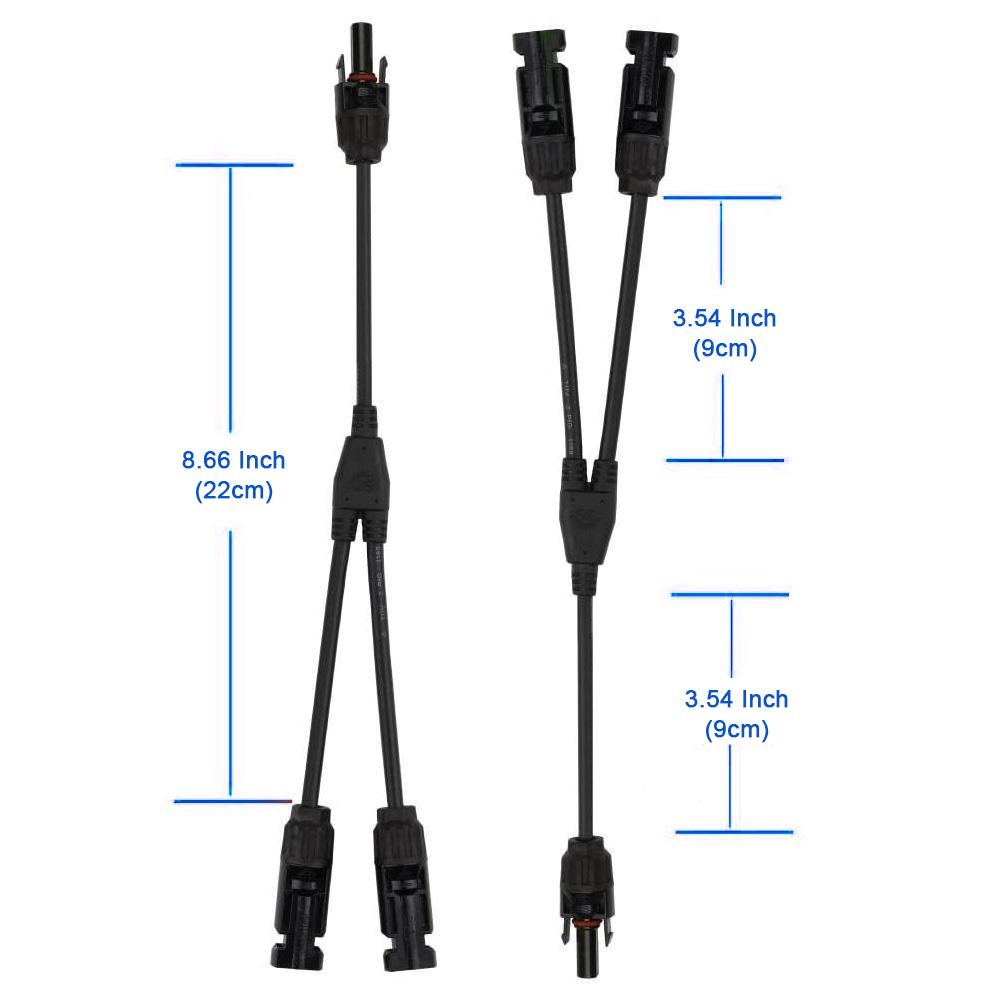

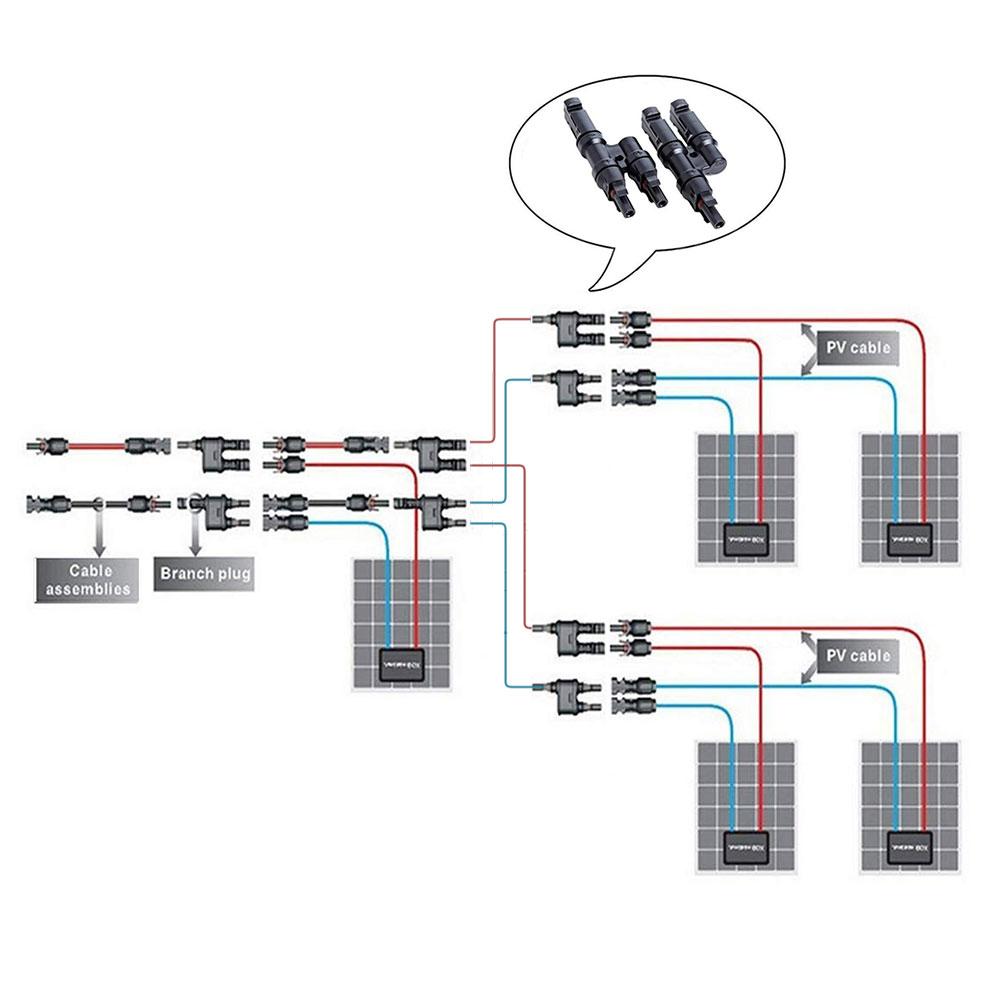

4 Pair Y Branch connector
