- Easy installation: With pre-drilled holes; each solar panel comes with 12AWG cable with MC4 male/female quick connectors
-
Hight Efficiency: 3PCS Polycrystalline solar cell efficiency: 14.35%; 30A MPPT charge controller peak efficiency: 99.5%
- MPPT Technology: Solar Charge Controller has user adjustable settings! LCD Screen shows, voltage, solar panel status, battery state of charge, and DC load draw. See Image in photo gallery for all LCD Screen readouts. Compatible with lead acid, AGM, gel, and lithium batteries
- Green Solar System: : Designed for RVs, cabins, homes, boats, back-up and remote power use. The two solar panels can be wired in parallel for 12V battery charging or in series for 24V battery charging
- Common Negative grounding design（If your system is common negative grounding design, please contact us before shipping）
- Warranty: 25-year transferable power output warranty on panels and 1-year warranty on rest of the kit components
- Multiple packages: Order will be delivered in multiple packages
Product Info.

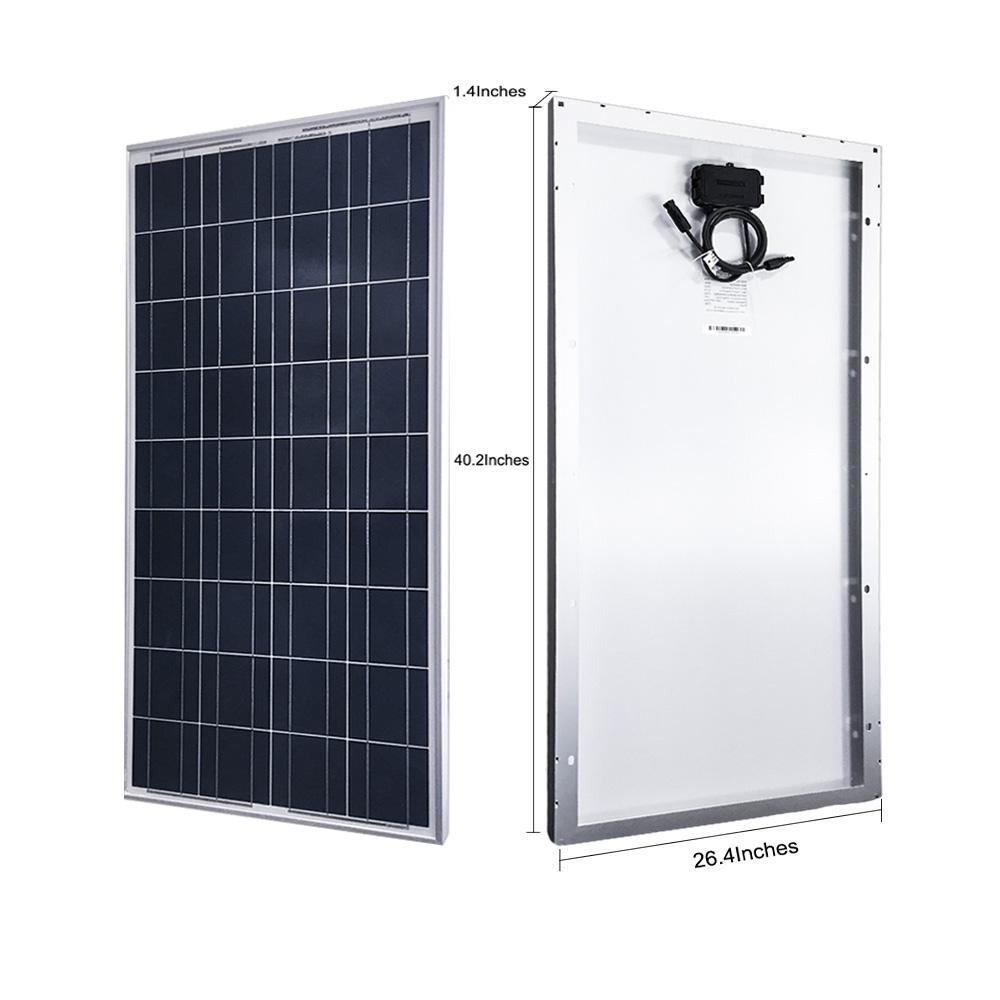

100W Polycrystalline Solar Panel
Specification
Peak Power (Pmax):100W
Peak Circuit Voltage(Voc):22.0V
Max Power Voltage(Vmp):17.48V
Short Circuit Current(Isc):6.21A
Max Power Current(Imp):5.72A
Power Tolerance Range:±3%
Maximum System Voltage DC:1000V
Wind resistance:2400pa
Weight:20.94 lb
Dimension:40.25*26.5*1.38 Inch
Application Class:Class A
Test condition:1000W/m², AM1.5,25℃
Features
1. Nominal for 12V battery changer
2. High-efficiency & high output.
3. High transparent low-iron, tempered glass.
4. Rugged design to withstand high wind pressure, hail and snow load.
5. Aesthetic outlook.

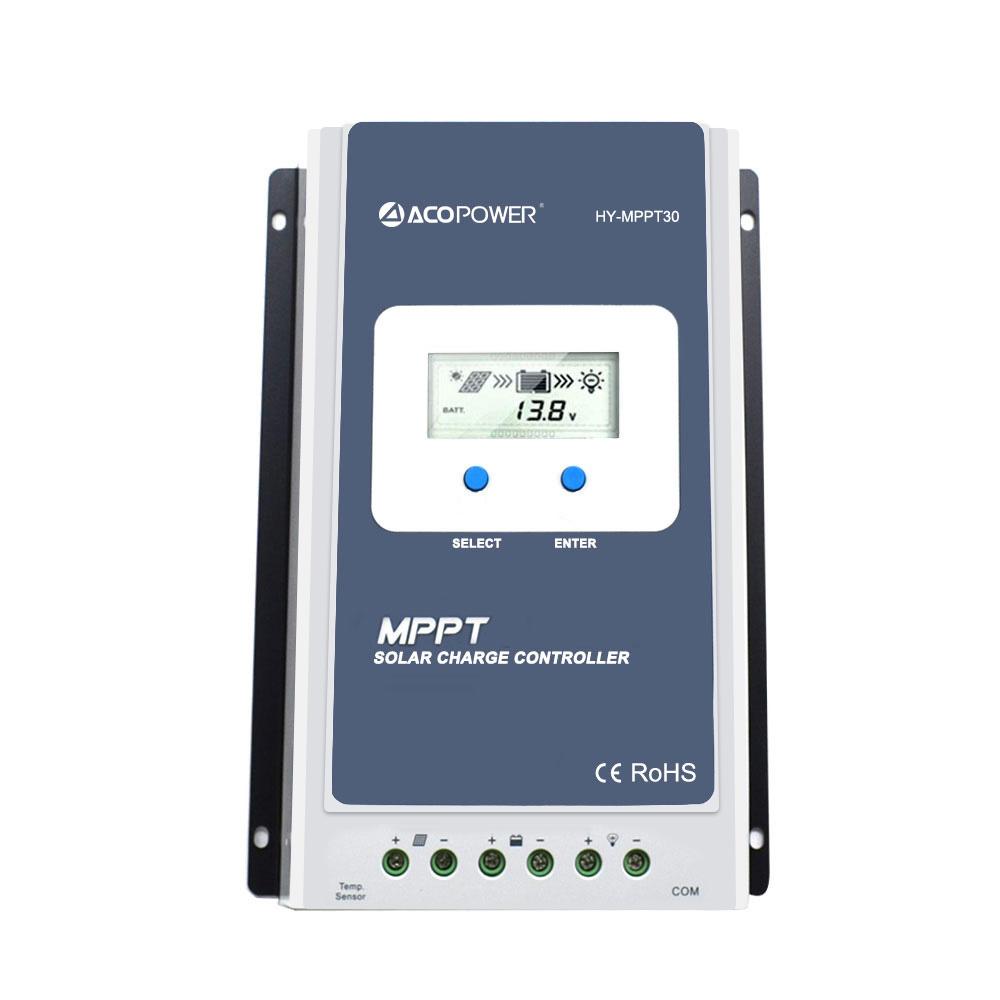

MPPT 30A Charge Controller
•Multiple load control modes: manual control, lighting ON/OFF, light On+Timer
•Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99.5%
• Wide MPPT operating voltage range.
• 12/24VDC automatically identifying system voltage.
• LCD display design, dynamically displaying tool's operating data and working condition.
• With RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirements
• Available for PC monitoring and external display unit connecting like MT50 and so on, realizing real-time data checking and parameters setting.
Features
Ultra-fast tracking speed
Accurately recognizing and tracking of multiple power point
User programmable for battery types, load control etc.
Common positive grounding design
Rated charge current: 30A
Battery voltage range: 9V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/390W,24V/780W
Enclosure: IP30
Charge Controller Electronic protections
•PV short circuit protection
•PV reverse polarity protection
•Battery over voltage protection
•Battery over discharge protection
•Battery reverse polarity protection
•Load overload protection
•Load short circuit protection

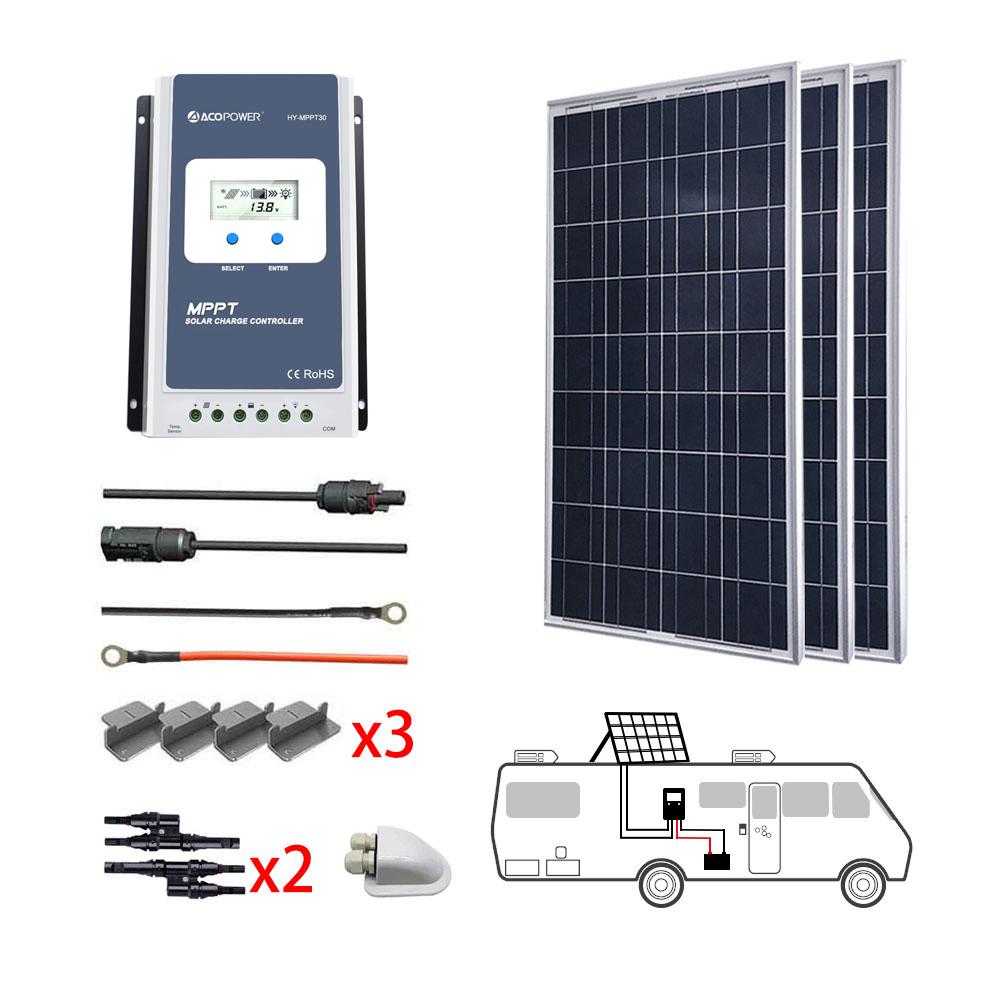

Packing list
3PC 100W Polycrystalline Solar Panel
1PC 30A MPPT Charge Controller

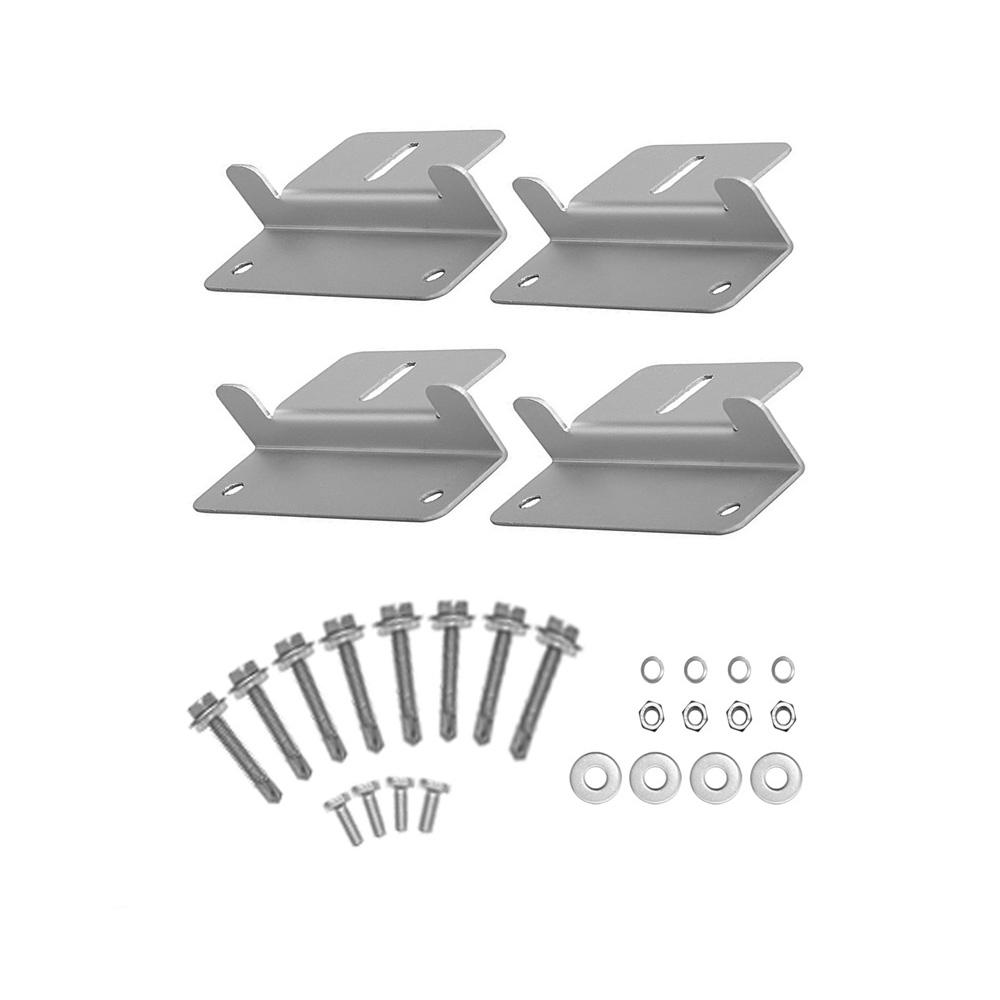

3 Sets Mounting Z Bracket

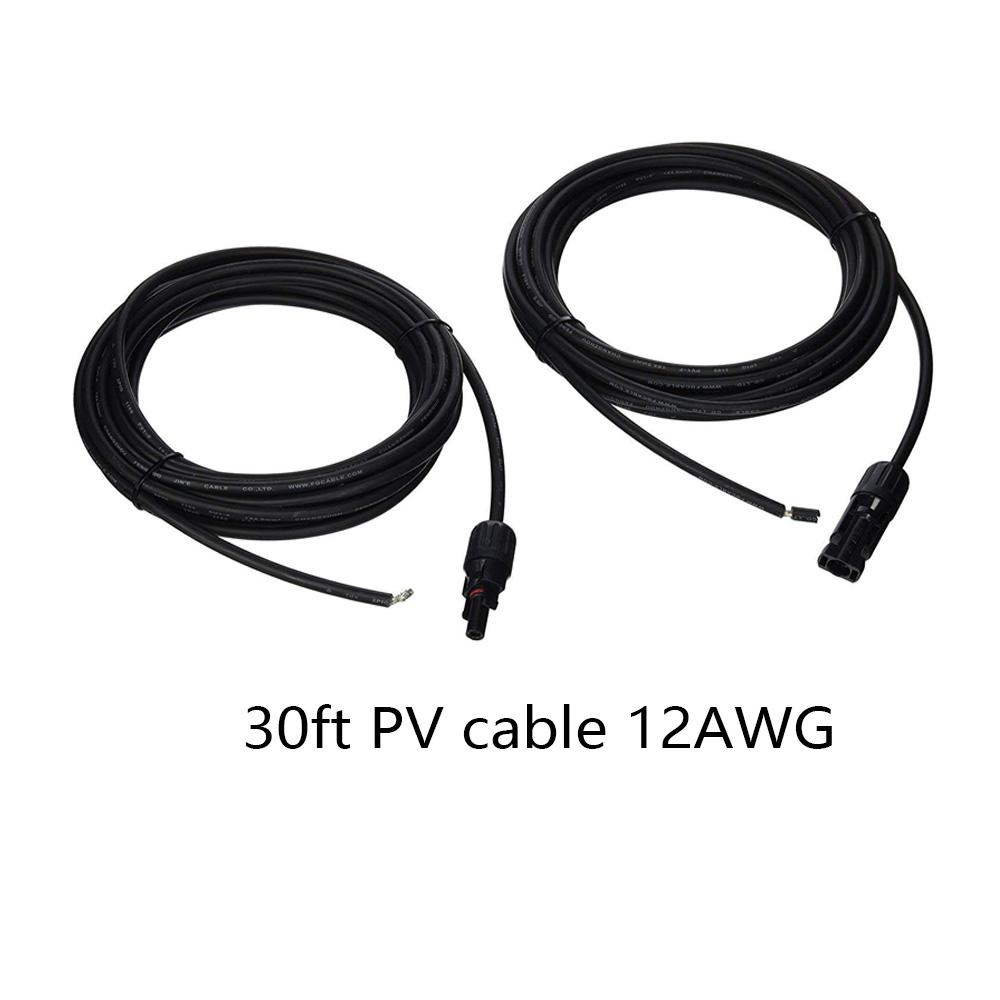

1PC 30ft 12AWG PV Cable

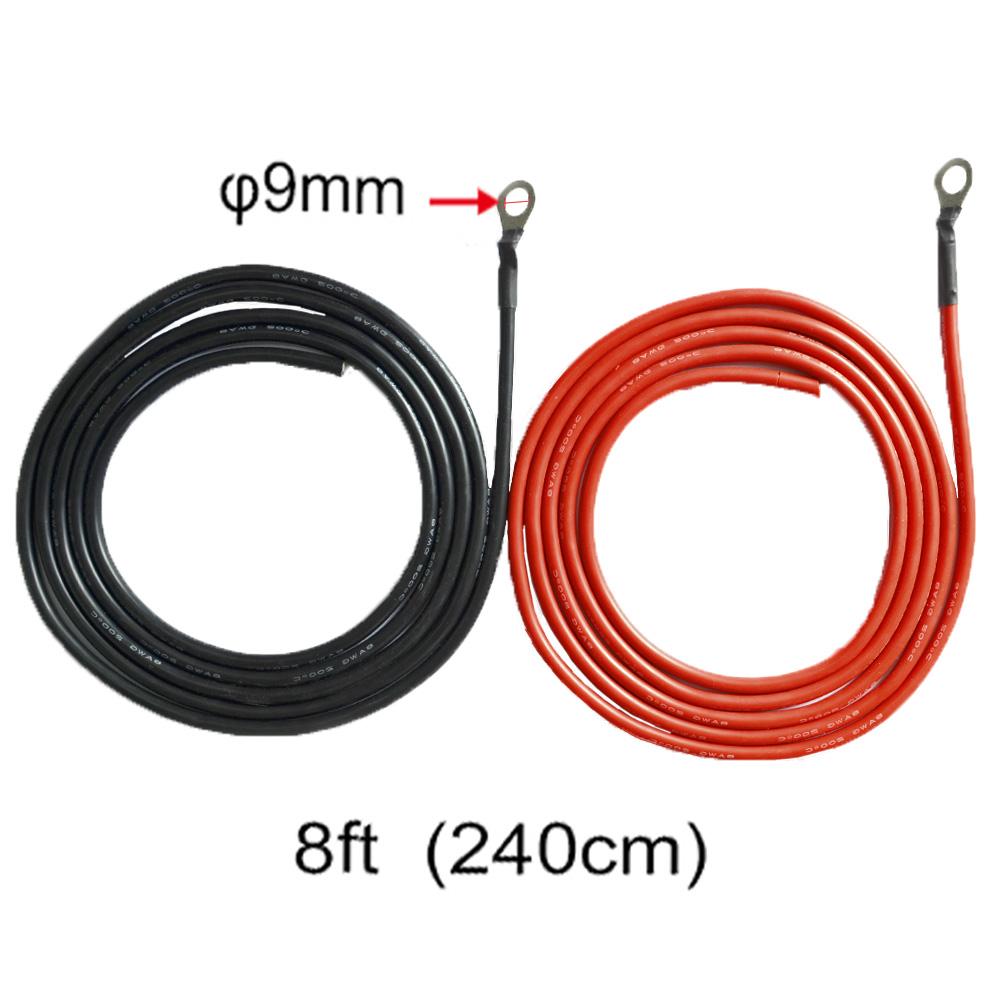

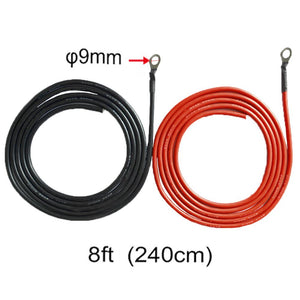

1PC 8FT 8AWG Tray Cable

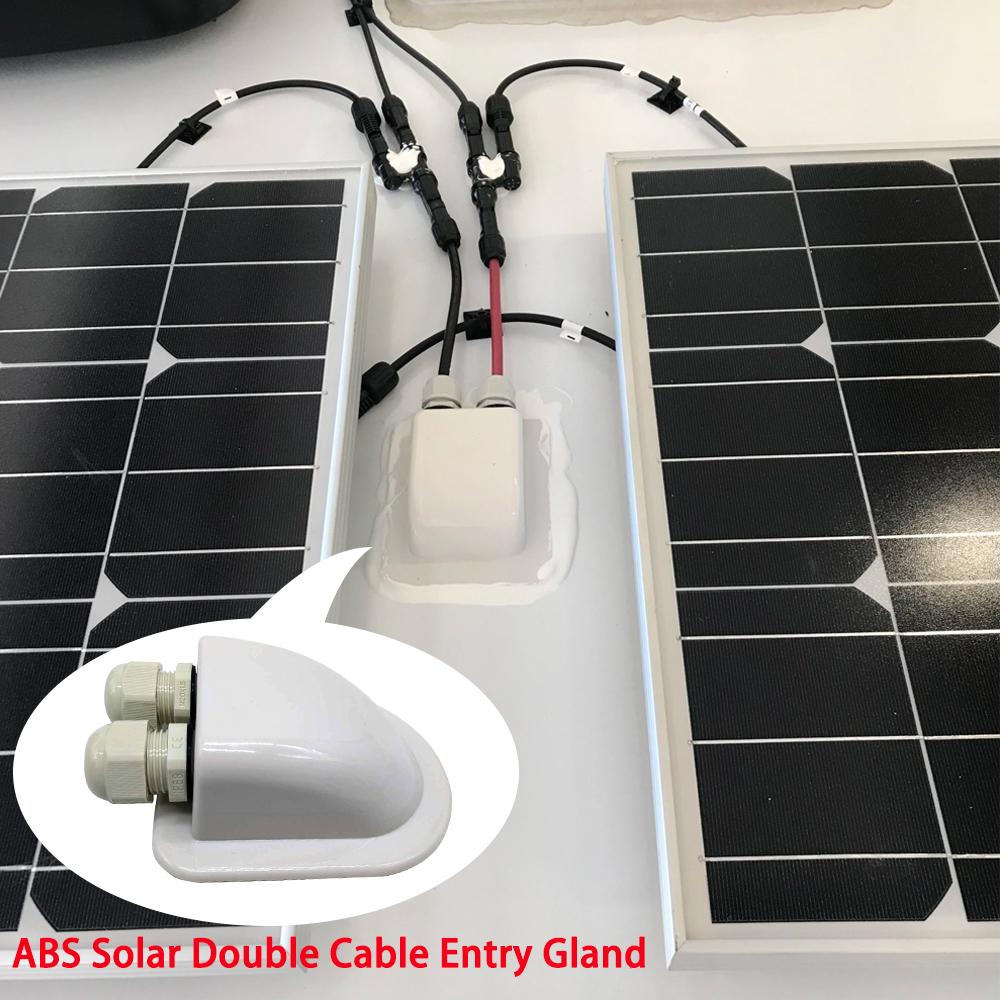

1PC Cable Entry Housing

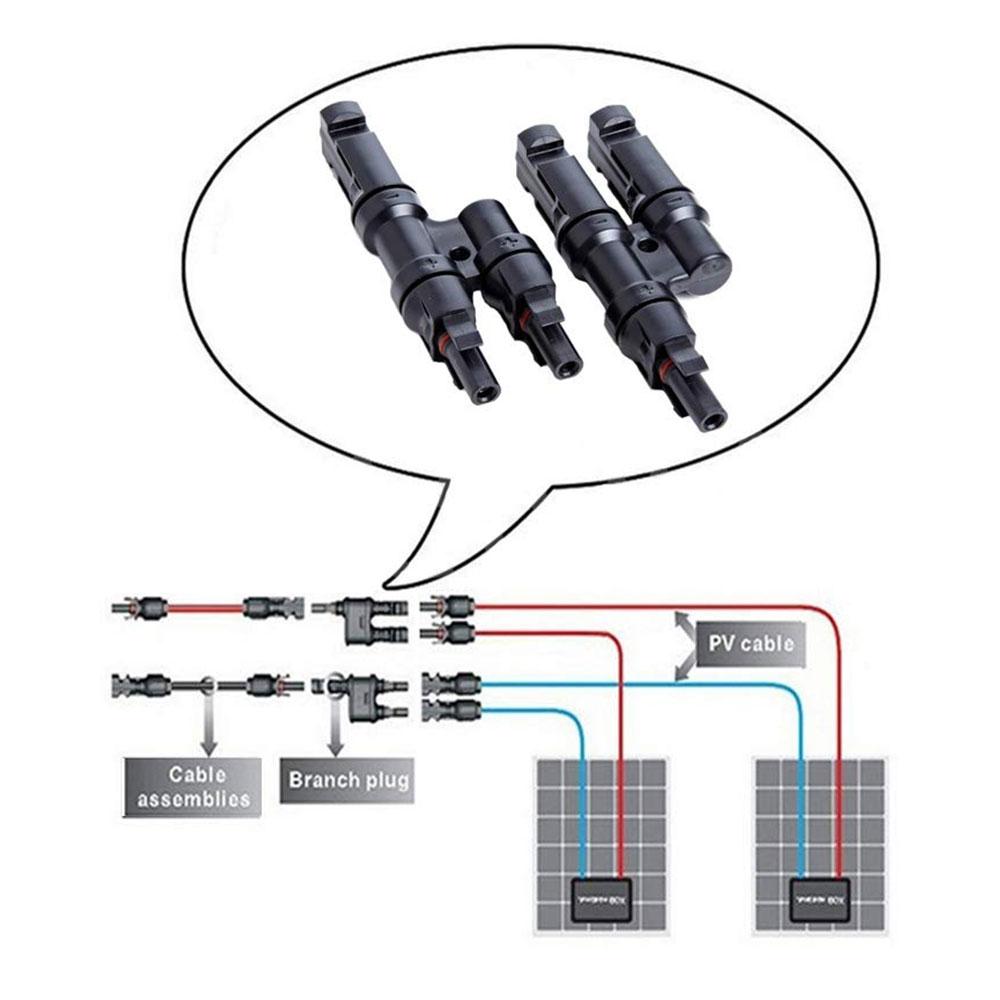

2 Pairs MC4 Branch Connectors.
